Batteries

EV battery packs may use structural adhesives, flexible adhesives, thermally conductive adhesives, pressure-sensitive adhesives, sealants and encapsulation materials. These materials can support cell bonding, module assembly, pack construction, thermal management, environmental sealing and the attachment of protective components.

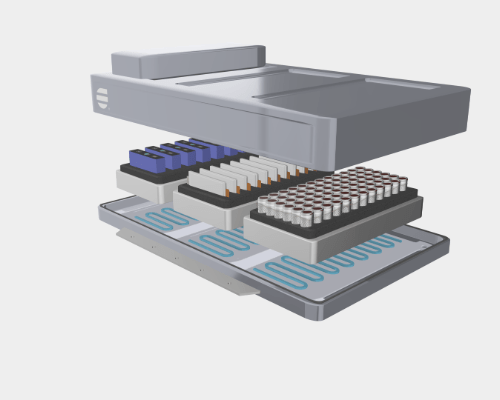

The appropriate adhesive depends on the cell format, substrate combination, bond-line geometry, cure process, production speed, operating environment, thermal requirements and service-life expectations. Cylindrical, prismatic and pouch-cell designs may have different bonding and processing requirements.

Thermal interface materials help transfer heat between battery components and cooling surfaces by filling air gaps and improving contact. Better thermal contact can help the battery thermal-management system maintain a more consistent operating temperature.

Temperature uniformity is important because excessive heat and large temperature differences between cells can affect charging performance, system efficiency and long-term durability. Actual results depend on the battery design, cooling system, material properties, bond-line thickness and operating conditions.

A thermal adhesive provides both bonding and heat-transfer functions, while a thermal gap filler is primarily designed to fill variable spaces and create a heat-transfer path between components. Certain gap fillers may also provide mechanical stability, but they should not automatically be treated as structural adhesives.

The correct choice depends on whether the application requires structural strength, flexibility, reworkability, flow control, a specific gap thickness or a particular thermal conductivity level.

Dielectric coatings electrically insulate conductive surfaces and help reduce the risk of unintended electrical contact. They may be applied to battery components, housings, busbar regions or other areas where electrical isolation is required.

Coating selection should consider dielectric performance, film thickness, adhesion, coverage, temperature exposure, environmental aging and compatibility with adjacent materials. The coating should be validated within the complete battery design rather than evaluated solely as an individual material.

Polyurethane foams can help cushion cells and components, fill spaces, limit movement and absorb mechanical energy generated by vibration or impact. These functions can help stabilize components during vehicle operation.

Foam density, hardness, expansion behavior, adhesion, compression response, temperature resistance and flame-retardancy requirements should be evaluated for the intended application. The foam must also be compatible with the battery’s cell chemistry, assembly process and surrounding materials.

Adhesives can support lightweight battery designs by joining dissimilar materials, distributing loads over a larger area and reducing the need for certain mechanical fasteners. They may also allow engineers to use thinner or differently configured components when the complete structure has been validated.

Any lightweighting benefit must be evaluated at the system level. Engineers should consider adhesive mass, joint design, crash and vibration performance, manufacturing requirements, serviceability and end-of-life objectives.

Thermal barriers, flame-retardant foams, protective coatings, insulating materials and application-specific adhesives can contribute to a battery system’s thermal-event mitigation strategy. Depending on their design and placement, these materials may help manage heat transfer or protect adjacent components.

No single material can independently ensure battery safety. Performance depends on cell chemistry, pack architecture, cooling design, venting, detection systems, mechanical protection and the validated interaction of all system components.

Adhesives are selected by evaluating the cell format, available bonding area, movement during cycling, substrate materials, thermal-management design and manufacturing process. Cylindrical cells may require precise placement and gap management, while prismatic and pouch cells may introduce different expansion, compression and surface-area considerations.

Selection should also account for cure conditions, dispensing method, production speed, bond-line control, vibration exposure, operating temperature, repair requirements and applicable tests.

Yes, adhesives formulated for controlled dispensing and consistent curing can support automated EV battery assembly. Automation considerations include viscosity, flow behavior, open time, cure speed, dispensing accuracy, equipment compatibility and process monitoring.

Manufacturers should validate the complete process, including material storage, conditioning, dispensing, detection, cure, inspection and quality control. A material suitable for the final battery design must also be compatible with the intended production environment.

EV battery adhesives should be tested using the intended substrates, surface preparation, bond geometry, application equipment and cure conditions. Testing may include adhesion, vibration, impact, thermal cycling, temperature exposure, humidity, chemical resistance, dielectric performance and thermal conductivity, depending on the application.

Testing should reflect the actual battery design and service environment. Product data can support initial screening, but final material selection should be based on application-specific validation and applicable customer, industry and regulatory requirements.
